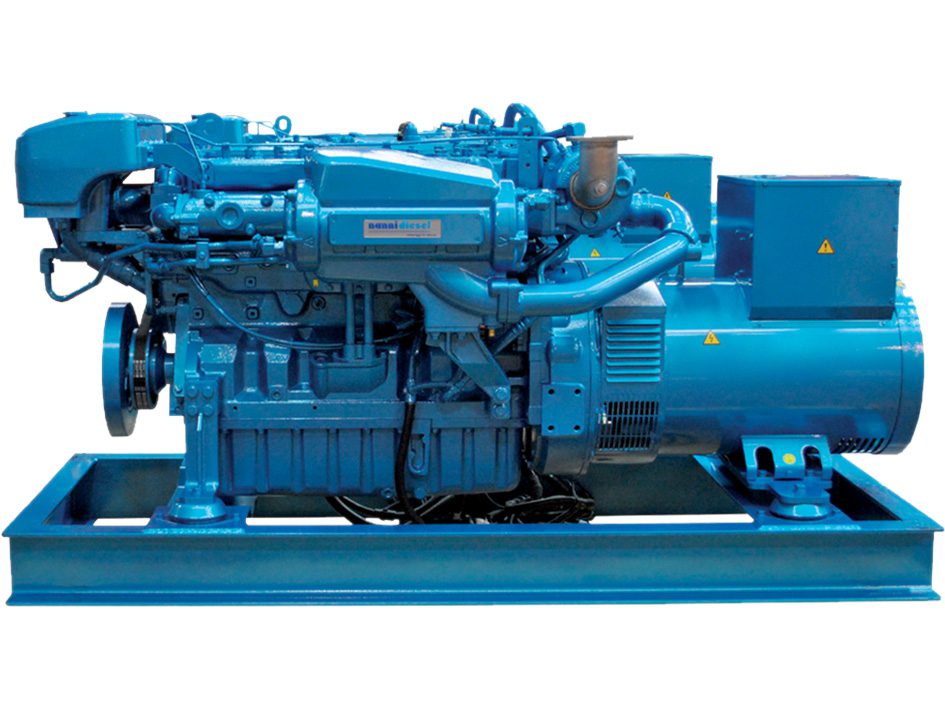

QLS 102T
Nanni is an international leader on the market of marine diesel engines with a product range between 10 and 2000 hp, and for power generator sets from 6 kW up to 750 kW. Moreover, Nanni is one of the top three brands for marine inboard diesel engines in the world.
| Frequency | 50 Hz |
| Voltage | 400 V |
| Amperes | 82.9 A continuous 118.4 A prime |
| Power | 57.4 kW continuous 82 kW prime |
| Protection | IP23 |
| Insulation | Class H |
| Voltage accuracy | ± 0.5% |
| Electromagnetic compatibility | EMC 2014/30/EU |
| Lenght | 1798 mm |
| Width | 809 mm |
| Height | 1045 mm |
| Dry weight | 1280 kg |
| Engine base | John Deere, mechanical engine |
| Cooling system | Seawater pump with rubber impeller |
| Closed cooling | Heat exchanger |
| Cylinders | 6 in line |
| Start (cold temperature) | Glow plugs |
| Fuel consumption at full load | 23.9 l/h |
| Sea water pump connexion | 50 mm |
| Fuel pump – Max suction height | std pump : 0.5 m with add. pump : 1.8 m |
| Engine operating angle | 15° cont. 30° max. |
| Fuel connexion | 10 mm |
| Class approval | Bureau Veritas |
