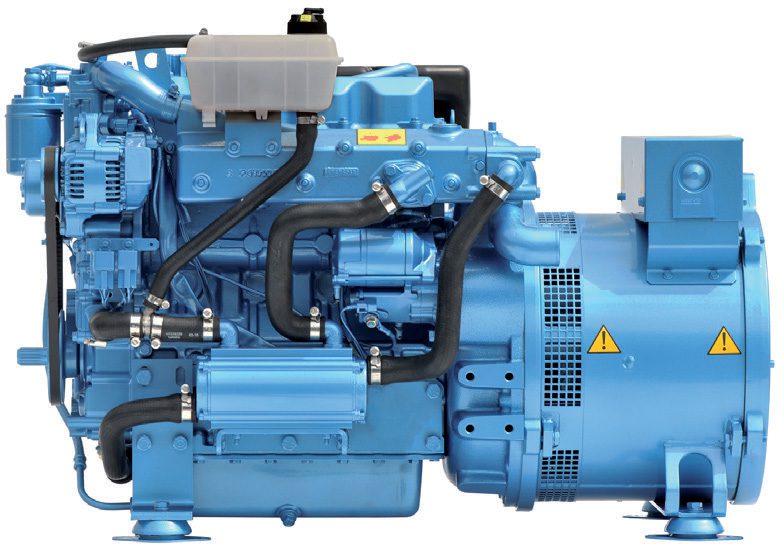

QMS 16M
Nanni is an international leader on the market of marine diesel engines with a product range between 10 and 2000 hp, and for power generator sets from 6 kW up to 750 kW. Moreover, Nanni is one of the top three brands for marine inboard diesel engines in the world.
| Frequency | 50 Hz |
| Voltage | 230 V |
| Amperes | 60.4 A cont. 70.4 A max. |
| Power | 13.9 kW cont. 16.2 kW max |
| Protection | IP23 |
| Insulation | Class H |
| Voltage accuracy | ± 1.5% |
| Radio interference | Deleted |
| Lenght | without sound shield : 1014 mm with sound shield : 1130 mm |
| Width | without sound shield : 548 mm with sound shield : 600 mm |
| Height | without sound shield : 691 mm with sound shield : 700 mm |
| Dry weight | without sound shield : 328 kg with sound shield : 378 kg |
| Engine base | Kubota |
| Cooling system | Seawater pump with rubber impeller |
| Closed cooling | Heat exchanger |
| Cylinders | 4 in line |
| Start (cold temperature) | Super Glow System |
| Exhaust connexion | 50 mm |
| Fuel consumption at full load | 4.8 l/h |
| Sea water pump connexion | 32 mm |
| Fuel pump – Max suction height | std pump : 0.5 m with add. pump : 1.8 m |
| Engine operating angle | 15° cont. 30° max. |
| Fuel connexion | 8 mm |
