Broşür

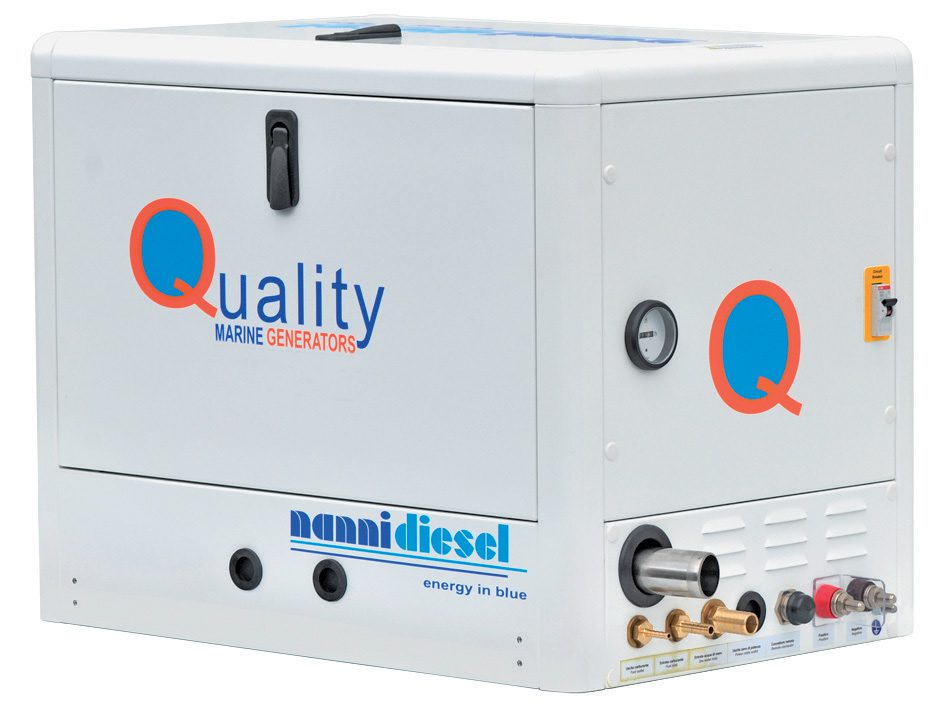

QMF 6M
Nanni is an international leader on the market of marine diesel engines with a product range between 10 and 2000 hp, and for power generator sets from 6 kW up to 750 kW. Moreover, Nanni is one of the top three brands for marine inboard diesel engines in the world.
| Frequency | 50 Hz |
| Voltage | 230 V |
| Amperes | 20 A cont. 21.7 A max. |
| Power | 4.6 kW cont. 5 kW max |
| Protection | IP23 |
| Insulation | Class H |
| Voltage accuracy | ± 5% |
| Radio interference | Deleted |
| Lenght | 650 mm |
| Width | 480 mm |
| Height | 530 mm |
| Dry weight | 128 kg |
| Engine base | Kubota |
| Cooling system | Seawater pump with rubber impeller |
| Closed cooling | Heat exchanger |
| Cylinders | 2 in line |
| Start (cold temperature) | Super Glow System |
| Exhaust connexion | 40 mm |
| Fuel consumption at full load | 2.2 l/h |
| Fuel pump – Max suction height | 25 mm |
| Engine operating angle | std pump : 0.5 m with add. pump : 1.8 m |
| Engine operating angle | 10° cont. 30° max. |
| Fuel connexion | 8 mm |
