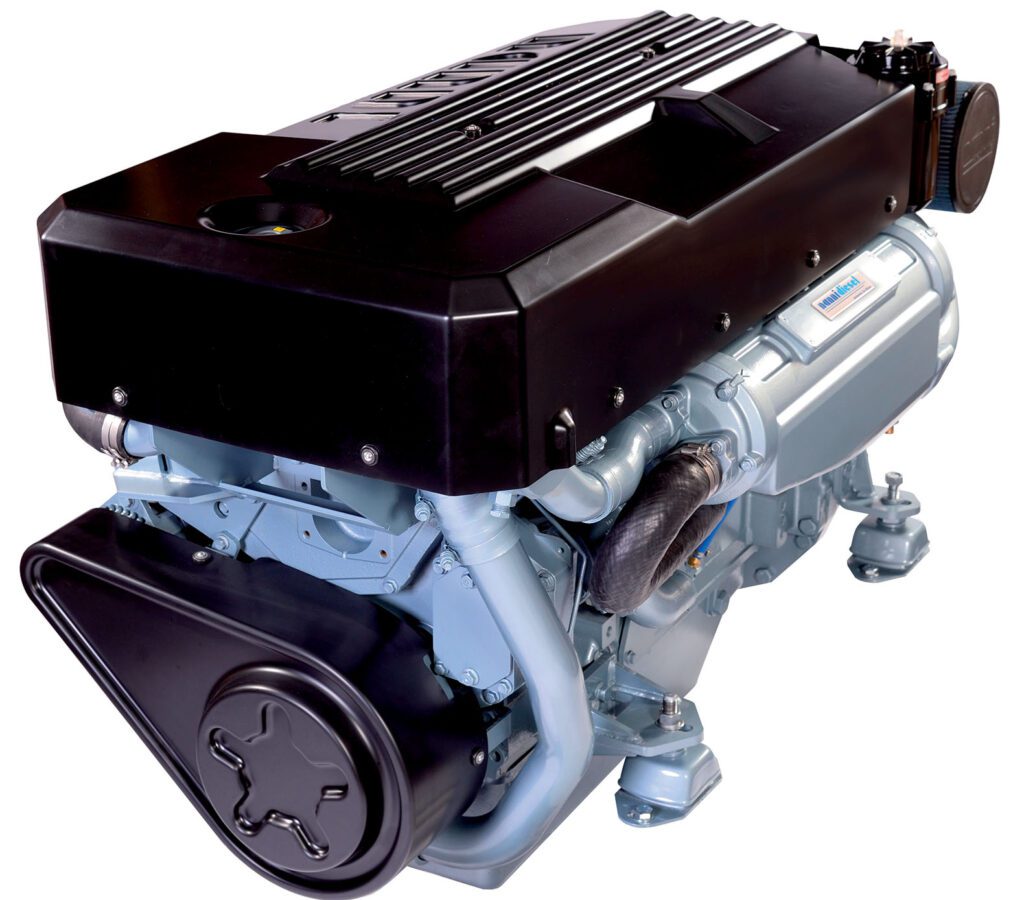

N13.800 CR2
Nanni is an international leader on the market of marine diesel engines with a product range between 10 and 2000 hp, and for power generator sets from 6 kW up to 750 kW. Moreover, Nanni is one of the top three brands for marine inboard diesel engines in the world.
| Power at crankshaft | 559 kW (760 hp) |
| Displacement | 13.6 |
| Configuration | 6 cylinders in line |
| Operation type | 4 strokes Diesel |
| Bore & Stroke | 132 x 165 mm |
| Compression ratio | 16:1 |
| Rated speed | 2200 rpm |
| Idling speed | 600 rpm |
| Peak torque | 2913 Nm |
| Peak torque speed | 1700 rpm |
| Engine base | John Deere |
| Fuel system | Direct injection High pressure Common Rail Electronically controlled |
| Air intake | Turbocharged Air-to-seawater aftercooler |
| Cooling | Closed cooling with heat exchanger |
| Max mounting angle | 0° Front down 12° Front up |
| Alternator | 24 Volt 100 Amp |
| Rating | M5 |
| Emission compliance | IMO Annex VI compliant EPA marine Tier 3 NRMM 97/68/EC RCD2 2013/53/EU |
| Dry weight with TM345A | 1380 kg |
