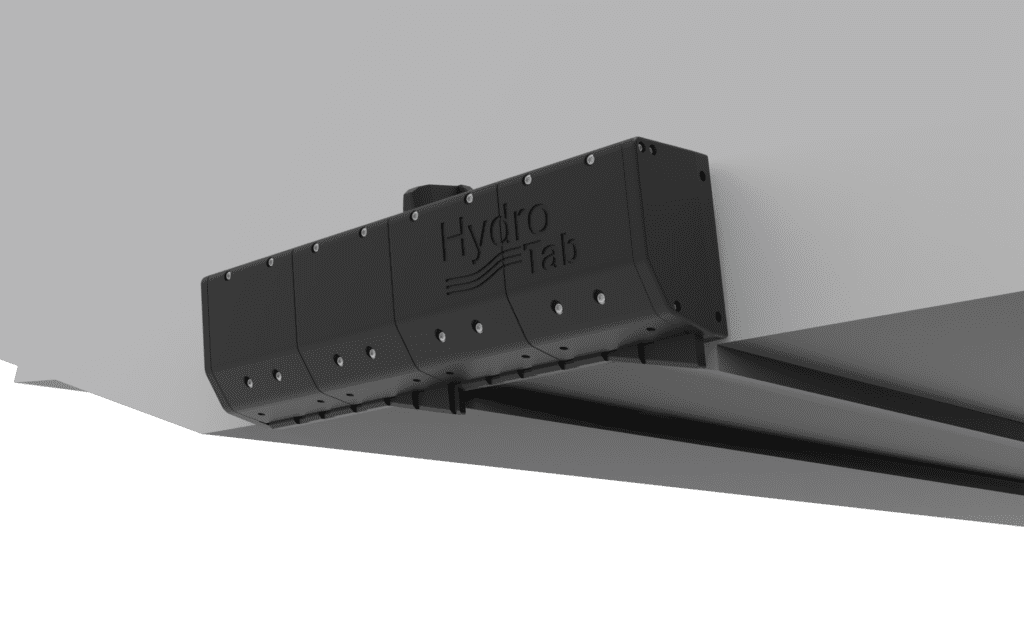

LS Series Interceptors
Hydrotab’s newest series, the SR Interceptors, provides all the benefits of Hydrotab’s revolutionary boat stabilization technology, while maintaining a lightweight compact design, without busting the bank!
The LS Series has a 60mm blade stroke, providing unparallel efficiency and instant triming response that will transform you boat ride experience
Check out the full video presentation below:
Environmentally friendly design
The interceptors are constructed with easily recyclable materials, reducing waste and the carbon footprint of their production!
The pneumatic operation works using compressed air instead of hydraulic oils, ensuring no pollution of the marine environment!
LS SERİES

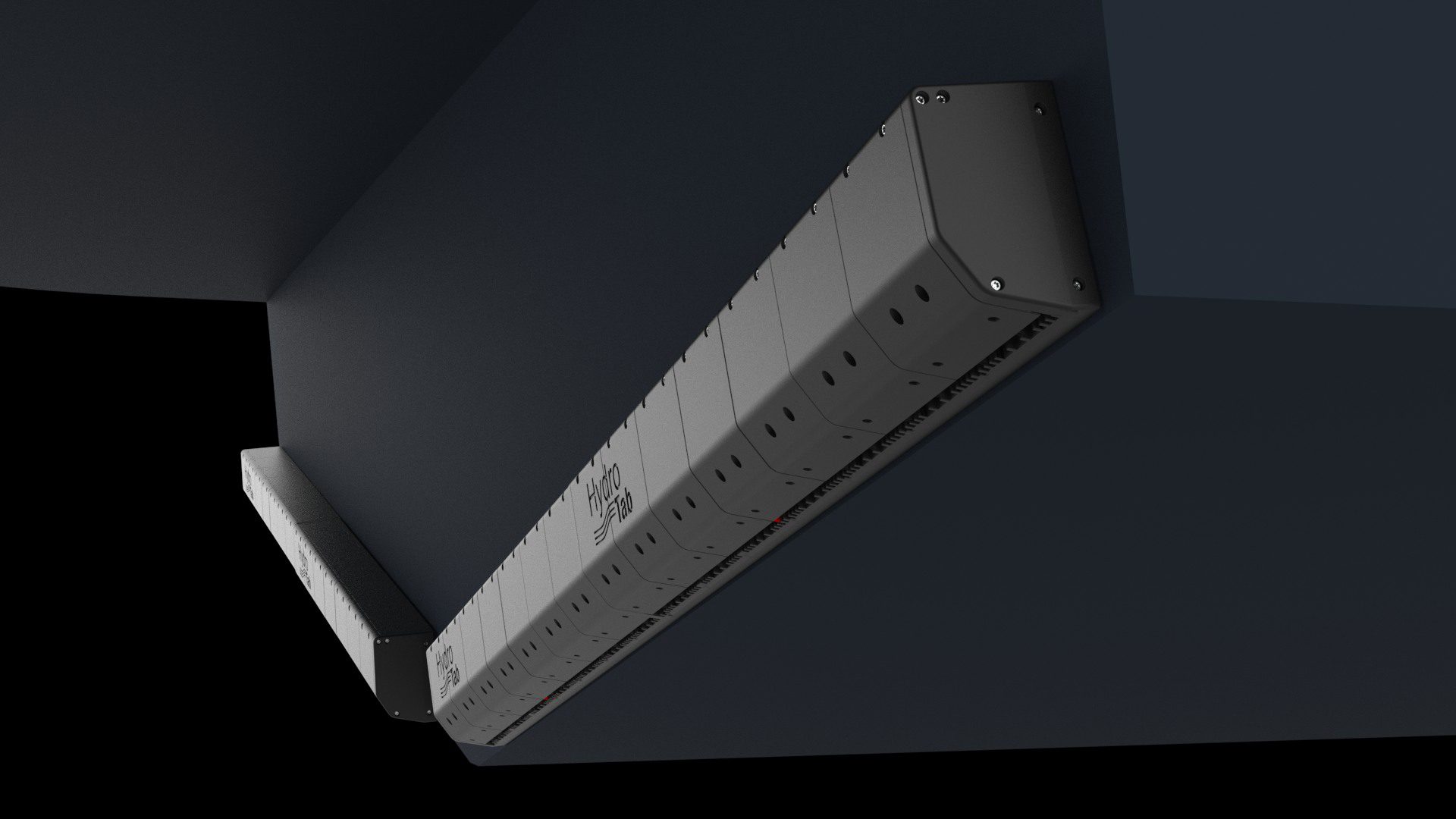

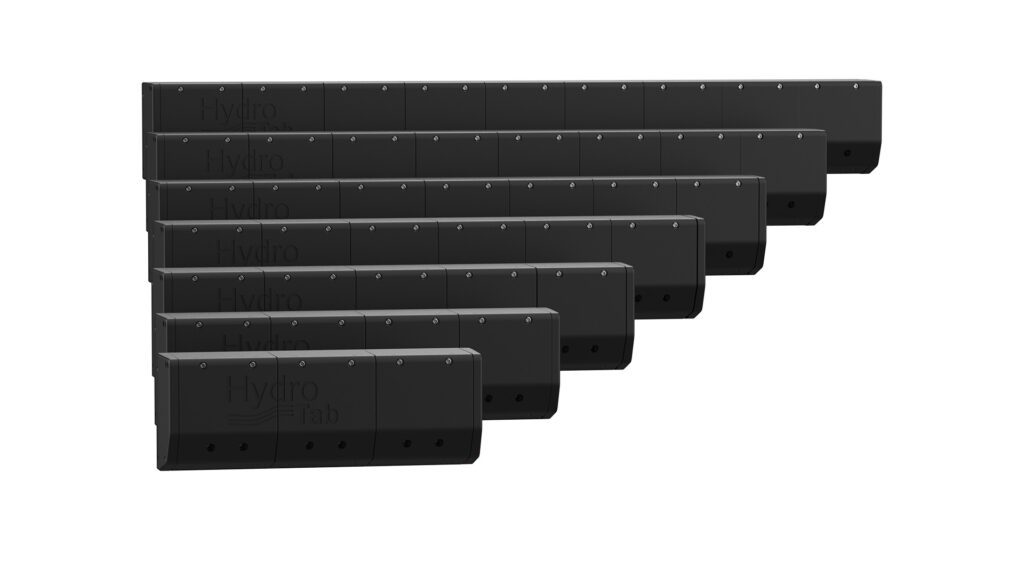

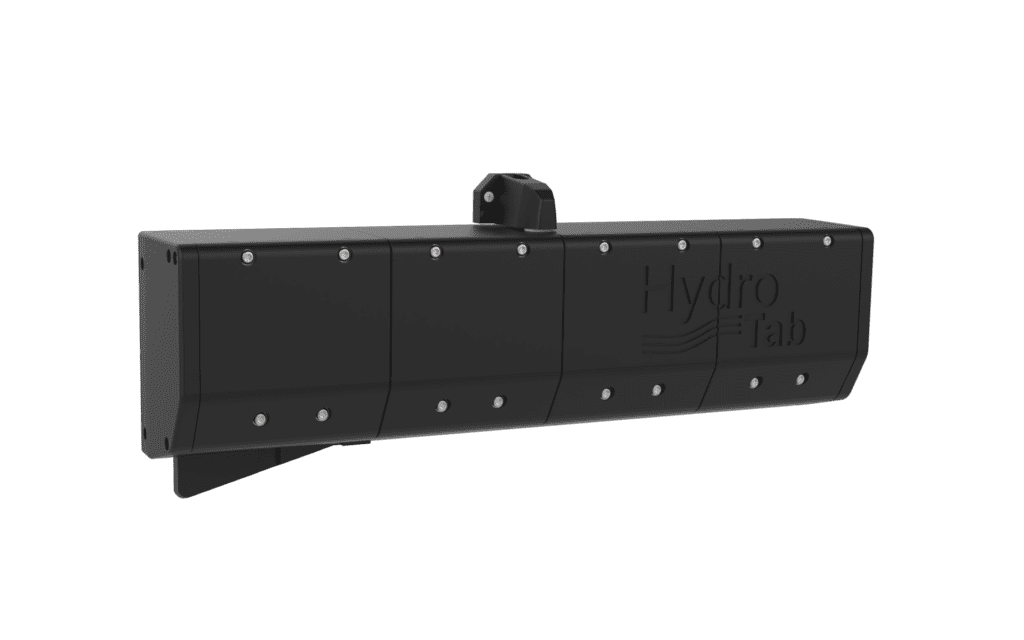

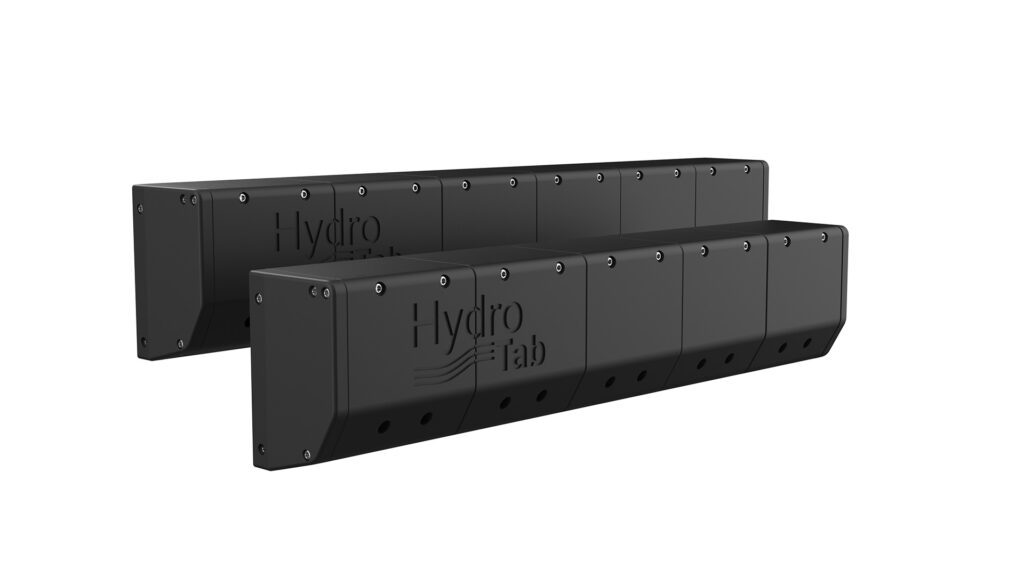

The LS Series interceptors are fully modular in their design, meaning they can be custom-made to any desirable length, making them extremely versatile for any and all projects
| Model | Length (mm) | Width (mm) | Height (mm) | Fitting height (FH) (mm) | Max Deployment (Stroke) (mm) |
|---|---|---|---|---|---|
| 1440LS | 1480 | 120 | 190 | 10 | 60 |
| 1280LS | 1320 | 120 | 190 | 10 | 60 |
| 1120LS | 1160 | 120 | 190 | 10 | 60 |
| 960LS | 1000 | 120 | 190 | 10 | 60 |
| 800LS | 840 | 120 | 190 | 10 | 60 |
| 640LS | 680 | 120 | 190 | 10 | 60 |
| 480LS | 520 | 120 | 190 | 10 | 60 |

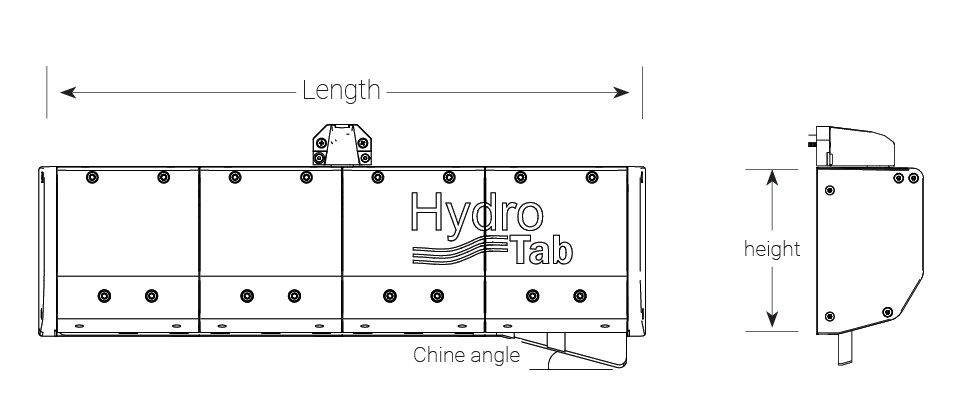

LS Chine
The LS Chine Interceptors are made to be installed on angled hulls. Our standard series accommodate the most common hull angles, but the blades can be custom made to fit specific angles, and even hulls with strakes
| Model | Length (mm) | Width (mm) | Height (mm) | Chine Angle (°) | Fitting height (FH) (mm) | Max Deployment (Stroke) (mm) |
|---|---|---|---|---|---|---|
| 1440LS | 1480 | 120 | 190 | 20 | 10 | 60 |
| 1280LS | 1320 | 120 | 190 | 20 | 10 | 60 |
| 1120LS | 1160 | 120 | 190 | 20 | 10 | 60 |
| 960LS | 1000 | 120 | 190 | 20 | 10 | 60 |
| 800LS | 840 | 120 | 190 | 20 | 10 | 60 |
| 640LS | 680 | 120 | 190 | 20 | 10 | 60 |
| 480LS | 520 | 120 | 190 | 20 | 10 | 60 |

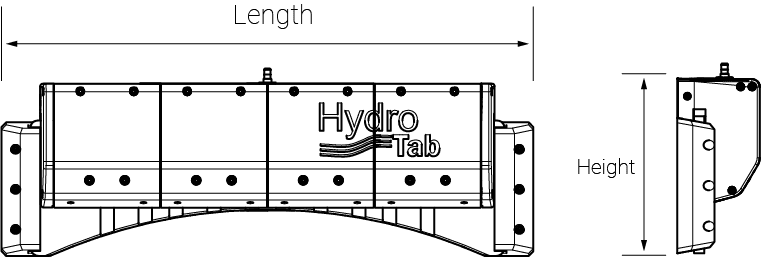

LS Tunnel
The LS Tunnel come at curvatures of R500, R600 and R800, but can be custom made to fit any and all hull shapes.
| Model | Length (mm) | Width (mm) | Height (mm) | Curvature | Fitting height (FH) (mm) | Max Deployment (Stroke) (mm) |
|---|---|---|---|---|---|---|
| 640LST (500R) | 796 | 120 | 258 | 500R | 10 | 60 |
| 640LST (600R) | 796 | 120 | 284 | 600R | 10 | 60 |
| 640LST (800R) | 796 | 120 | 309 | 800R | 10 | 60 |
LS Custom
The LS and SR Series can be made with custom blades. These Custom series can accommodate every and all hull shapes and sizes, from angled hulls, cutaways and strakes.

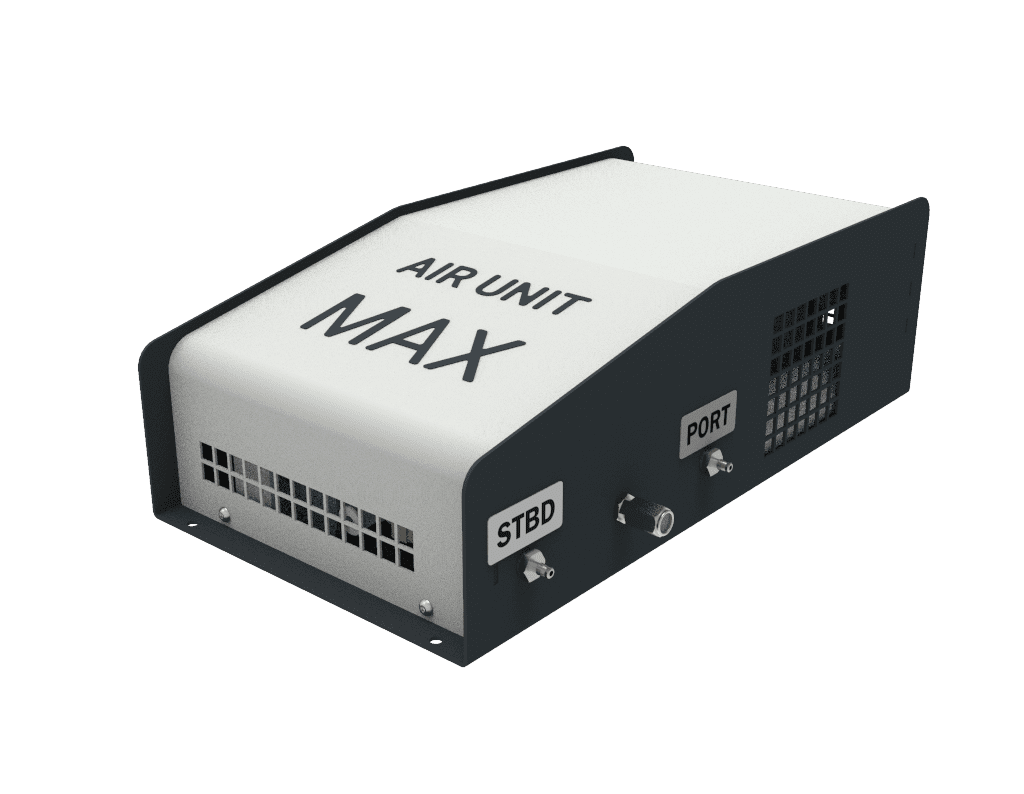

The AirUnit Max
The heart of the Hydrotab system is the AirUnit. A slick and compact box that goes in the engine room of your boat, the AirUnit provides the system with 2.5 bars of pressure so that you get the quickest response times possible.
| Compressor power | 380W |
|---|---|
| Air compressor type | Brushless, oil-free |
| Voltage | 24Vdc |
| Amps | 15A |
| In Line Fuse | 30A |
| Max Pressure | 3 bar |
